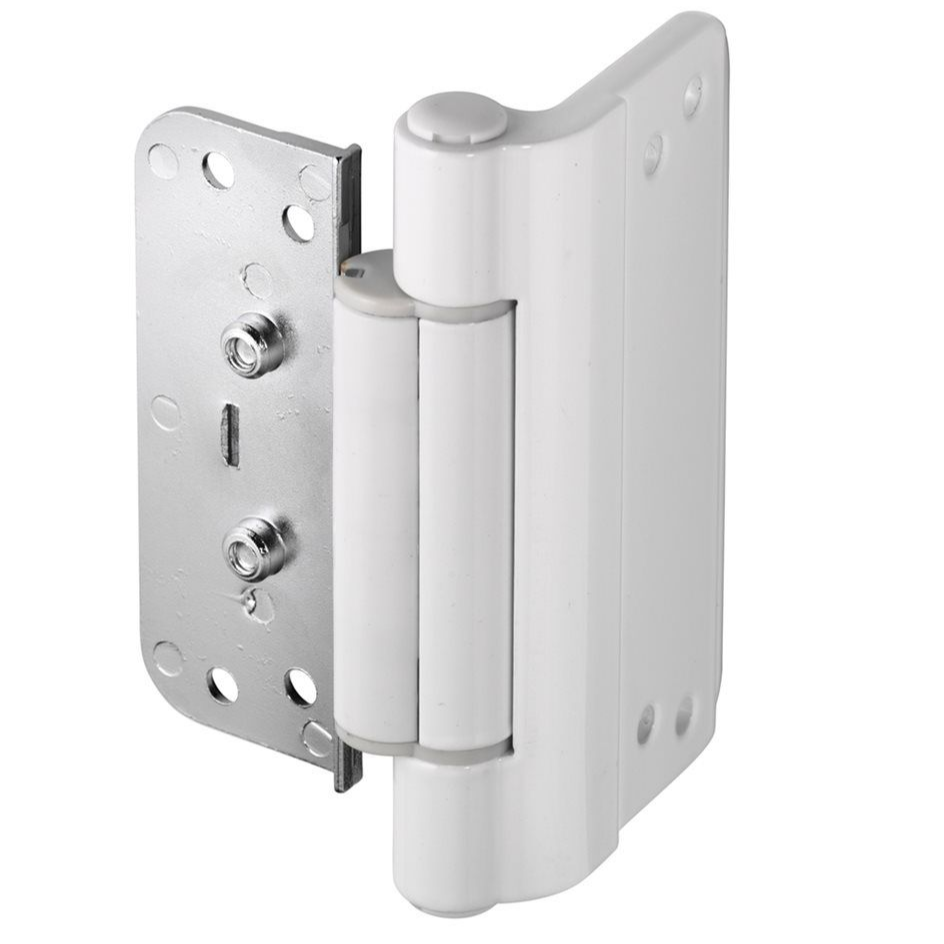

Trojan 3D Composite Door Hinge White

Product Details

Trojan 3D Composite Door Hinge White x1

• Features.

1. A butt hinge with full 3D adjustment for a perfect door fit
2. Simultaneous vertical adjustment across all hinges which ensures even load distribution
3. Lateral adjustment is done in a single operation which gives a perfect alignment on the pivot axis
4. Fits into rebate to give unobtrusive secure design
5. Can achieve PAS 24 accreditation as part of a specific door assembly
6. Sash can easily be removed from frame for easy installation
7. Pre-assembled, ready to fit design

Specification.

1. Zinc die cast components
2. Stainless steel parts - 430
3. Plastic parts are Nylon 66, UV stabilised ABS
4. Corrosion tested to BS EN 1670: Painted finishes Grade 5 (240hrs), plated finishes Grade 4 (480hrs)
5. Conforms to EN 1191 - tested to 100,000 cycles
6. Can achieve PAS 24 as part of a specific door assembly
7. 3 hinges carry 100kg
8. Maximum door size - 1m wide x 2.2m high
9. Lateral +/- 3mm
10. Vertical +/- 4mm
11. Compression +/- 1.75mm
